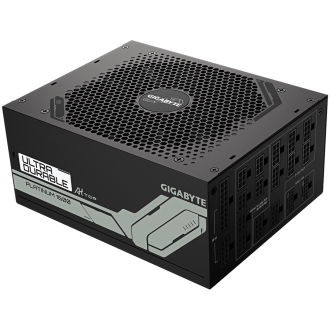

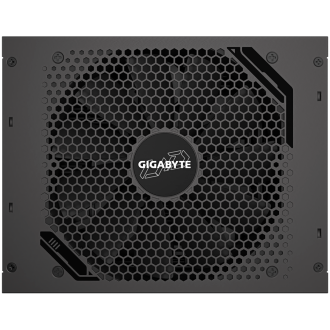

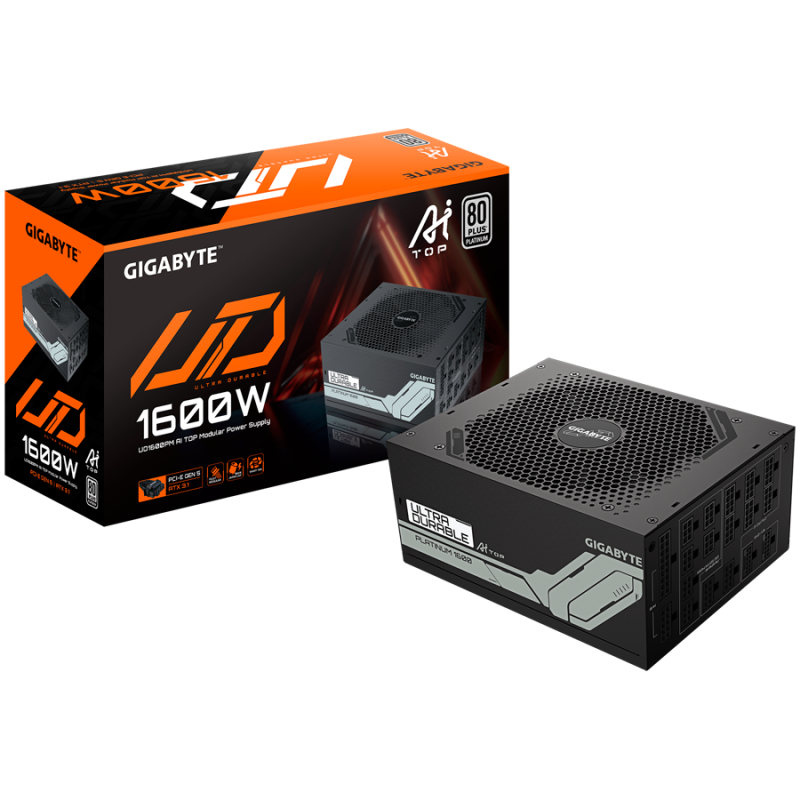

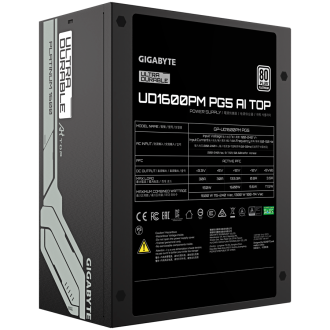

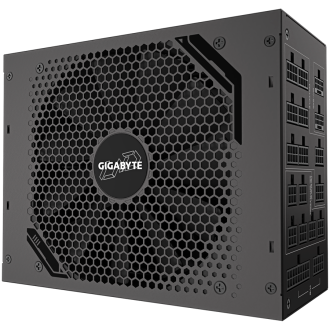

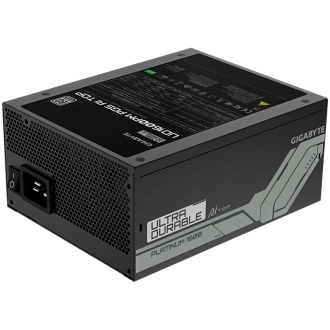

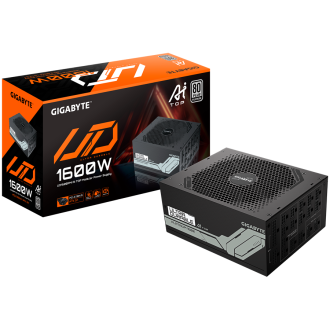

GIGABYTE UD1600PM PG5 Power Supply 1600W, 80+ Platinum, ATX 3.1, PCIe Gen 5.0, Modular, EU

€379.90

Tax included

Sold Out

Reference: UD1600PM PG5

GIGABYTE UD1600PM PG5 Power Supply 1600W, 80+ Platinum, ATX 3.1, PCIe Gen 5.0, Modular, EU

Power Device Type	Power Supply
Power Device Unit Quantity	1
Power Device Location	Plug-in-module
Form Factor	ATX
Input Voltage	AC 100-240 V
Input Frequency	50/60 Hz
Rated Input Current	15 A
Input Power Connectors Quantity	1
Input Power Connectors Type	IEC-320 C14
Maximum Output Power	1600 W
Circuit Protection	Over Voltage ; Undervoltage ; Over Temperature ; Over Current ; Short Circuit Protection ; Over Power
Modular Power Supply	Yes
Power Adapter and Power Supply Features	Active PFC
Built-in Devices	Power Button
80 Plus Certification	80 Plus Platinum
Efficiency	92%
+3.3V / +5V	30 A (150 W)
+12V	133.3 A (1600 W)
-12V	0.8 A (9.6 W)
+5VSB	3.5 A (17.5 W)
20+4-pin Main Connector	1
4/8-pin +12V Power Connector	2
8-pin +12V Power Connector	2
4-pin Peripheral Power Connector	6
4-pin Floppy Drive Connector	2
S-ATA Connector	16
6/8-pin PCI Express Connector	8
16-pin PCI Express 5.0 (12VHPWR) Connector	2
Maximum Fans Supported Quantity	1
Fans Installed Quantity	1
Fan Diameter	140 mm
External Color	Black
Mean Time Between Failures	100000
Depth (mm)	190 mm
Height (mm)	86 mm
Width (mm)	150 mm
Warranty Products Returnable	Yes
Warranty Term (month)	120 months
Warranty Validation Criteria	Serial Number
Pack Weight Brutto (kg)	1.6 kg
Pack Weight Netto (kg)	1 kg
Pieces in pack	1
Box Weight Brutto (kg)	1.5 kg
Retail Packaging Net Weight Carton	0.1 kg
Retail Packaging Net Weight Plastic	0.1 kg
Packs in Box	1
Package Type	Retail
EAN Code	4719331555047
