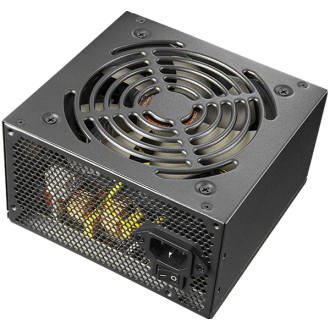

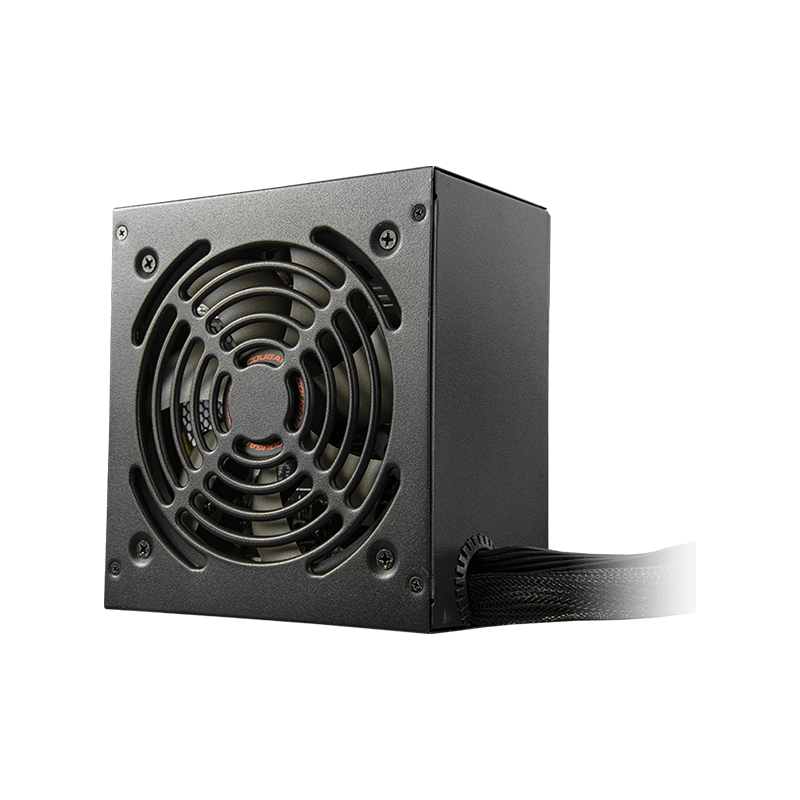

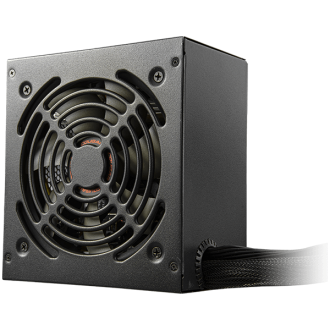

COUGAR ATLAS 550 PSU, 80 plus Bronze, 550W
Brand: Cougar
COUGAR ATLAS 550 PSU, 80 plus Bronze, 550W
€59.90
Tax included
Sold Out
Reference: CGR-AT550
Category: Power Supplies
COUGAR ATLAS 550 PSU, 80 plus Bronze, 550W
Technical specifications
| Power Device Type | Power Supply |
|---|---|
| Power Device Location | Plug-in-module |
| Form Factor | ATX |
| Input Voltage | AC 100-240 V |
| Input Frequency | 50/60 Hz |
| Rated Input Current | 10 A |
| Input Power Connectors Quantity | 1 |
| Input Power Connectors Type | IEC-320 C14 |
| Maximum Output Power | 550 W |
| Circuit Protection | Over Voltage ; Undervoltage ; Over Current ; Short Circuit Protection ; Over Power |
| Power Adapter and Power Supply Features | Low noise |
| Built-in Devices | Power Button |
| 80 Plus Certification | 80 Plus Bronze |
| Efficiency | 86% |
| +3.3V | 20 A |
| +5V | 20 A |
| +12V | 45.8 A (549.6 W) |
| -12V | 0.3 A (3.6 W) |
| +5VSB | 3 A (15 W) |
| 20+4-pin Main Connector | 1 |
| 4/8-pin +12V Power Connector | 1 |
| 4-pin Peripheral Power Connector | 2 |
| S-ATA Connector | 6 |
| 6/8-pin PCI Express Connector | 2 |
| Fans Installed Quantity | 1 |
| Fan Diameter | 120 mm |
| External Color | Black |
| Included Accessories | Documentation |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 36 months |
| Warranty Validation Criteria | Serial Number |
| Pack Weight Brutto (kg) | 1.98 kg |
| Pack Weight Netto (kg) | 1.68 kg |
| Pieces in pack | 1 |
| Box Weight Brutto (kg) | 17.9 kg |
| Packs in Box | 9 |
| Package Type | Box |
