• New

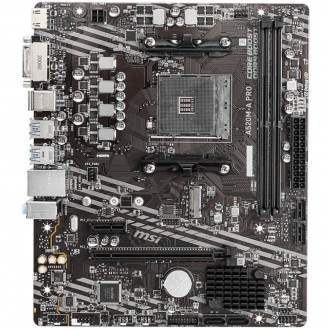

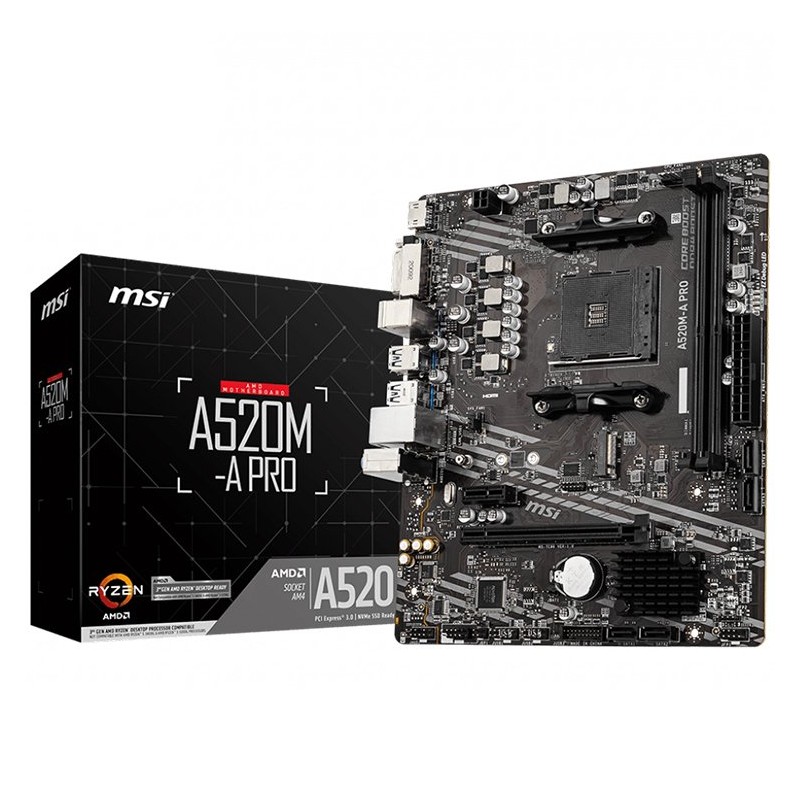

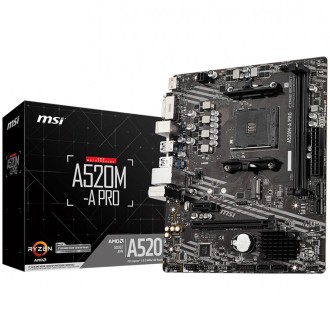

MSI Main Board Desktop A520M-A PRO (A520, AM4, 2xDDR4, 1x PCI-E 3.0 x16 slot,1x M.2 slot,4x USB 3.2 Gen1,2x USB 2.0,1x HDMI,1x D

MSI Main Board Desktop A520M-A PRO (A520, AM4, 2xDDR4, 1x PCI-E 3.0 x16 slot,1x M.2 slot,4x USB 3.2 Gen1,2x USB 2.0,1x HDMI,1x D

Sign up to earn 69 points (€0.69) on this product Sign up to earn 69 points (€0.69) on this product
Each €1.00 spent = 1 point — 1 point = €0.01 discount.
Your cart would reach 69 points (€0.69) in total
Brand: MSI

MSI Main Board Desktop A520M-A PRO (A520, AM4, 2xDDR4, 1x PCI-E 3.0 x16 slot,1x M.2 slot,4x USB 3.2 Gen1,2x USB 2.0,1x HDMI,1x DVI-D,Gigabit LAN,7.1 HD Audio, mATX, Retail)

€69.90
Tax included
Quantity

Reference: A520M-A PRO
Category: Motherboards

MSI Main Board Desktop A520M-A PRO (A520, AM4, 2xDDR4, 1x PCI-E 3.0 x16 slot,1x M.2 slot,4x USB 3.2 Gen1,2x USB 2.0,1x HDMI,1x DVI-D,Gigabit LAN,7.1 HD Audio, mATX, Retail)

Technical specifications

ChipsetAMD A520
Supports Central Processor UnitAMD Ryzen Series
CPU Socket StandardSocket AM4
CPU Maximum Quantity Supports1
Memory TypeDDR4 SDRAM
Memory Form FactorDIMM 288-pin
Memory Speed2133MHz(PC4-17000) ; 2400MHz(PC4-19200) ; 2666MHz(PC4-21300) ; 2800MHz(PC4-22400) ; 3000MHz(PC4-24000) ; 3200MHz(PC4-25600)
Maximum Installable System Memory Storage Capacity128 GB
Memory Slot Total Quantity2
Provides Error Checking MethodECC
Memory FeaturesTwo DDR Channels ; Unbuffered
IntegratedStorage Controller:; PCIe 3.0 x4/SATA (1 x M.2 (Key M)); Storage Controller:; Supports: Level 0, Level 1, Level 10; SATA III-600 (4);
Audio Integratedyes
Device LocationIntegrated
Audio ChipsetRealtek ALC892/ALC897
Audio Data Width24-bit
Audio Output Mode7.1 Channel Surround
Compliant Audio StandardsHigh Definition Audio
LAN Integratedyes
LAN ChipsetRealtek RTL8111H
Data Link Protocol SupportsGigabit Ethernet/Fast Ethernet/Ethernet
PCI Express 3.0 x161
PCI Express 3.0 x11
PS/21

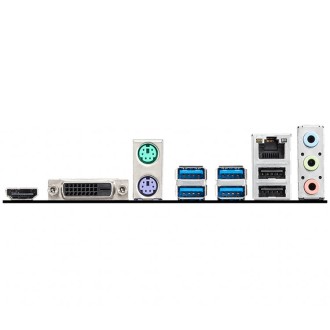

HDMI1 (HDMI (Type A))
LAN1 (RJ-45)
USB 3.2 Gen 14 (USB 3.2 (type A))
USB 2.02 (USB 2.0 (type A))
Audio Interface3 (3.5-mm minijack)
BIOS TypeAMI
BIOS FeaturesASUS CrashFree BIOS 3 ; UEFI ; PXE boot ; ASUS EZ Flash 3 ; 256 Mb Flash ROM
Wake up/SleepWake on LAN
Power Connectors Type24+8 pin
Cable Included2 x SATA 6Gb/s Cables
Included AccessoriesI/O Shield ; User Guide ; Screws
Form FactorMicro ATX
Height (mm)200 mm
Width (mm)236 mm
Warranty Products ReturnableYes
Warranty Term (month)36 months
Warranty Validation CriteriaSerial Number
Pack Weight Brutto (kg)0.1 kg
Pack Weight Netto (kg)0.1 kg
Pieces in pack1
Box Weight Brutto (kg)0.1 kg
Retail Packaging Net Weight Carton0.1 kg
Retail Packaging Net Weight Plastic0.1 kg
Packs in Box1
Package TypeRetail
MSI
A520M-A PRO
21 Items

Specific References

EAN13
4719072749927
