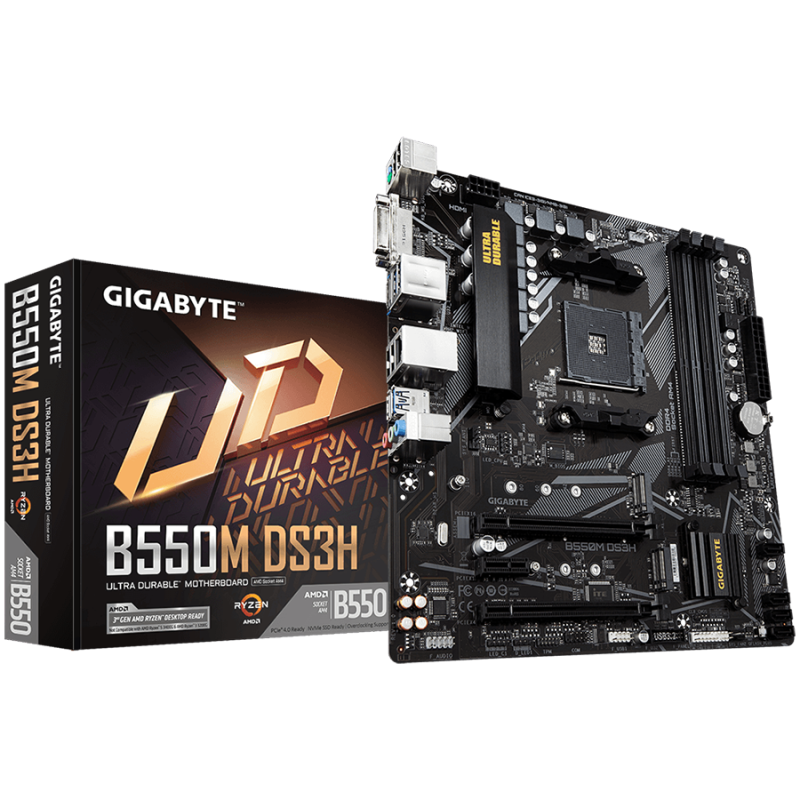

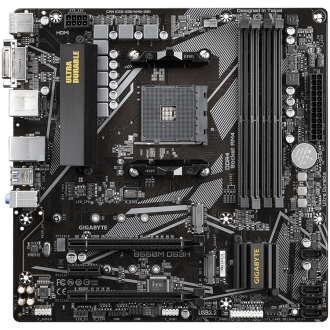

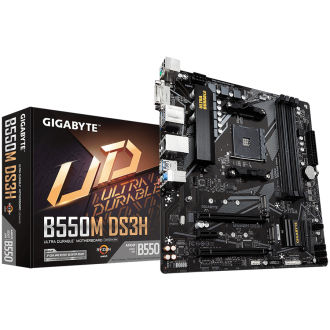

GIGABYTE MB B550 AM4 4 x DDR4 PCIe 3.0 2 x M.2 4 x SATA 1 x DVI-D port 1 x DisplayPort 1 x HDMI port Micro ATX

Marka: Gigabyte

109,90 €

s PDV-om

Rasprodano

Referenca: B550M DS3H

Category: Matične ploče

Opis
Detalji proizvoda

GIGABYTE MB B550 AM4 4 x DDR4 PCIe 3.0 2 x M.2 4 x SATA 1 x DVI-D port 1 x DisplayPort 1 x HDMI port Micro ATX

Tehničke specifikacije

Chipset	AMD B550
CPU podrška	AMD Ryzen Series 3rd Generation ; AMD Ryzen Series 4th Generation ; AMD Ryzen Series 5th Generation
CPU podnožje	Socket AM4
CPU Max. količina	1
Vrsta memorije	DDR4 SDRAM
Format memorije	DIMM 288-pin
Brzina memorije	2133MHz(PC4-17000) ; 2400MHz(PC4-19200) ; 2666MHz(PC4-21300) ; 2800MHz(PC4-22400) ; 2933MHz(PC4-23400) ; 3000MHz(PC4-24000) ; 3200MHz(PC4-25600)
Max. kapacitet memorije	128 GB
Količina utora	4
Provjera pogrešaka	ECC
Značajke memorije	Two DDR Channels ; Unbuffered ; Dual Rank ; Single Rank ; XMP
Integriran	Storage Controller:; Supports: Level 0, Level 1, Level 10; SATA III-600 (4); Storage Controller:; PCIe 4.0 x4/SATA (1 x M.2 (Key M)); Storage Controller:; PCIe 3.0 x2/SATA (1 x M.2 (Key M));
Integrirani video kontroler	Da
Integrirani audio	Da
Vrsta	Integriran
Audio izlaz	7.1 Channel Surround
Audio standard	HD audio
Integrirani LAN	Da
Podržana brzina	Gigabit Ethernet/Fast Ethernet/Ethernet
PCI Express x16	1
PCI Express 3.0 x1	2

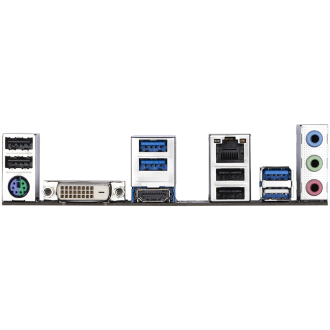

DisplayPort	1
HDMI	1 (HDMI (Type A))
LAN	1 (RJ-45)
USB 3.2 Gen 1	4 (USB 3.2 (type A))
USB 2.0	4 (USB 2.0 (type A))
PS/2	1
Audio izlaz	3 (3.5-mm minijack)
DVI	1 (DVI-D)
BIOS vrsta	AMI
BIOS	Gigabyte @BIOS ; Gigabyte Q-Flash ; Gigabyte Xpress Install ; WfM 2.0 Support ; Gigabyte EasyTune ; PnP 1.0a Support ; UEFI ; SMBIOS 2.7 Support ; 128 Mb Flash ROM ; DMI 2.7 Support ; ACPI 5.0 Support
Mainboard Features	Fan Speed Control
Softver	Norton Internet Security (OEM version)
Podržani operativni sustavi	Microsoft Windows 10 64-bit ; Microsoft Windows 11 64-bit
Dodaci	Brzi priručnik
Format	Micro ATX
Visina (mm)	244 mm
Širina (mm)	244 mm
Jamstvo u Hrvatskoj	Da
Jamstveni rok (mjeseci)	36 mjeseci
Validacija jamstva	Serijski broj
Bruto težina (kg)	0.93 kg
Neto težina (kg)	0.931 kg
Količina u pakiranju	1
Bruto težina kutije (kg)	0.93 kg
Težina kartona	0.01 kg
Težina plastike	0.01 kg
Količina u kutiji	1
Vrsta pakiranja	Maloprodajno
EAN kod	4719331809416
