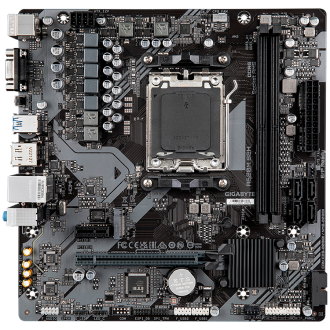

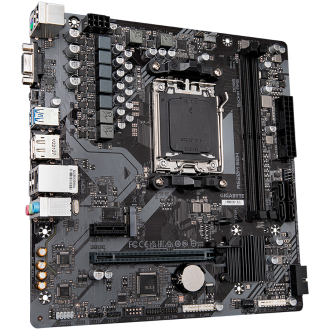

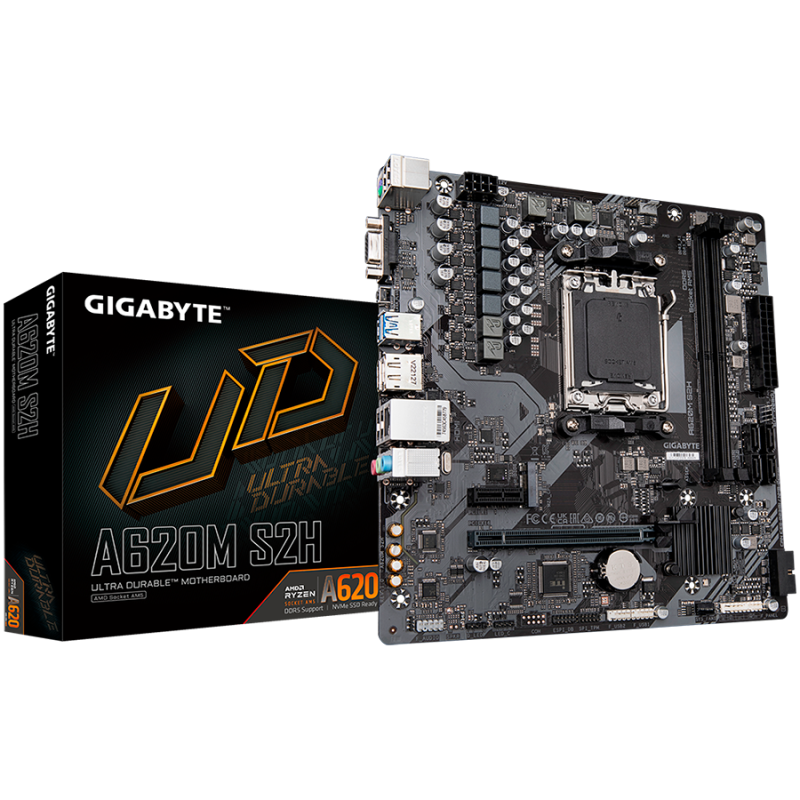

GIGABYTE Mainboard Desktop A620M S2H AM5 2 x DDR5 4 x SATA 1 x D-Sub 1 x DisplayPort 1 x HDMI port Micro ATX
Sign up to earn 99 points (€0.99) on this product
Each €1.00 spent = 1 point — 1 point = €0.01 discount.
Your cart would reach 99 points (€0.99) in total
Brand: Gigabyte
GIGABYTE Mainboard Desktop A620M S2H AM5 2 x DDR5 4 x SATA 1 x D-Sub 1 x DisplayPort 1 x HDMI port Micro ATX
€99.90
Tax included
In stock
Reference: A620M S2H
Category: Motherboards
GIGABYTE Mainboard Desktop A620M S2H AM5 2 x DDR5 4 x SATA 1 x D-Sub 1 x DisplayPort 1 x HDMI port Micro ATX
Technical specifications
| Chipset | AMD A620 |
|---|---|
| Supports Central Processor Unit | AMD Ryzen 7000 Series |
| CPU Socket Standard | Socket AM5 |
| CPU Maximum Quantity Supports | 1 |
| Memory Type | DDR5 SDRAM |
| Memory Form Factor | DIMM 288-pin |
| Memory Speed | 5200MHz(PC5-41600) |
| Maximum Installable System Memory Storage Capacity | 96 GB |
| Memory Slot Total Quantity | 2 |
| Provides Error Checking Method | non-ECC |
| Memory Features | Two DDR Channels ; Unbuffered ; Dual Rank ; Single Rank ; XMP ; AMD EXPO |
| Integrated | Storage Controller:; Supports: Level 0, Level 1, Level 10; PCI Express 4.0 x4 (1 x M.2 (Key M)); Storage Controller:; Supports: Level 0, Level 1, Level 10; SATA III-600 (4); |
| Video Controller Integrated | yes |
| Audio Integrated | yes |
| Device Location | Integrated |
| Audio Output Mode | 7.1 Channel Surround |
| Compliant Audio Standards | High Definition Audio |
| LAN Integrated | yes |
| Data Link Protocol Supports | Gigabit Ethernet/Fast Ethernet/Ethernet |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x1 | 1 |
| USB 2.0 | 4 (USB 2.0 (type A)) |
| PS/2 | 1 |
| VGA | 1 (15-pin D-sub) |
| USB 3.2 Gen 1 | 2 (USB 3.2 (type A)) |
| DisplayPort | 1 |
| HDMI | 1 (HDMI (Type A)) |
| LAN | 1 (RJ-45) |
| Audio Interface | 3 (3.5-mm minijack) |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 Support ; PnP 1.0a Support ; UEFI ; SMBIOS 2.7 Support ; DMI 2.7 Support ; ACPI 5.0 Support ; 256 Mb Flash ROM |
| Hardware Monitoring | CPU Temperature ; CPU Voltage ; System Temperature ; System Voltage |
| Power Connectors Type | 24+8 pin |
| Mainboard Features | Fan Speed Control |
| Software Included | Norton Internet Security (OEM version) |
| Supported Operating System | Microsoft Windows 10 64-bit ; Microsoft Windows 11 64-bit |
| Form Factor | Micro ATX |
| Height (mm) | 225 mm |
| Width (mm) | 230 mm |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 36 months |
| Warranty Validation Criteria | Serial Number |
| Pack Weight Brutto (kg) | 0.8 kg |
| Pack Weight Netto (kg) | 0.804 kg |
| Pieces in pack | 1 |
| Box Weight Brutto (kg) | 8 kg |
| Retail Packaging Net Weight Carton | 0.01 kg |
| Retail Packaging Net Weight Plastic | 0.01 kg |
| Packs in Box | 10 |
| Package Type | Retail |
| EAN Code | 4719331855208 |
