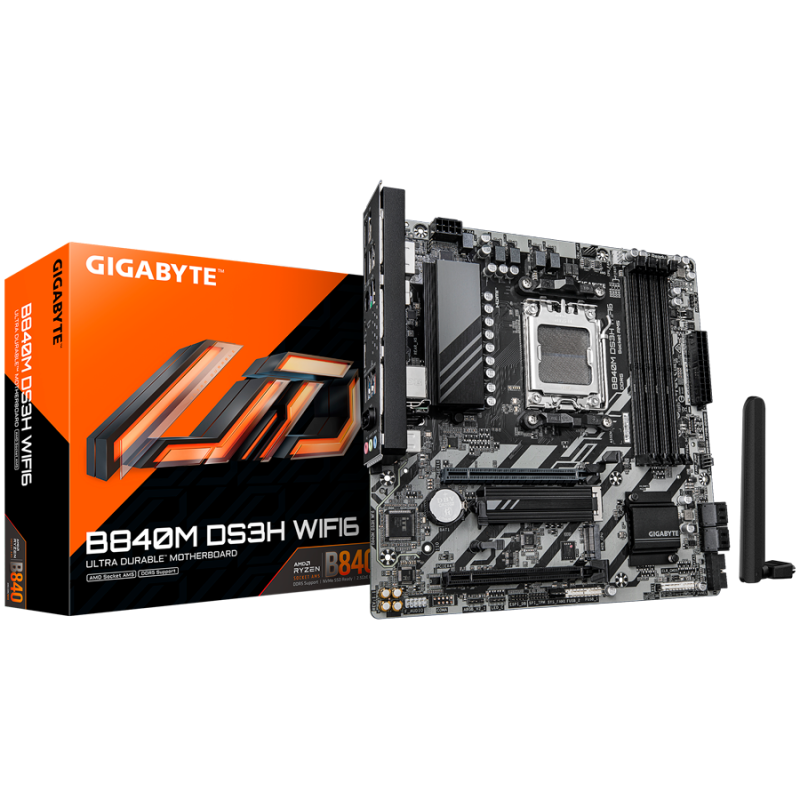

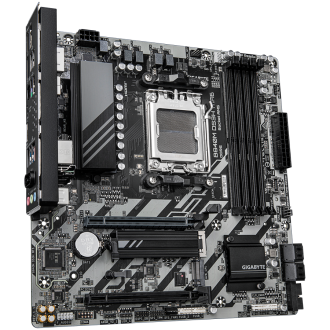

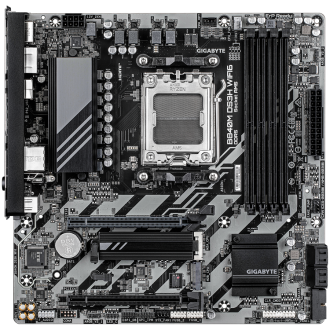

GIGABYTE B840M DS3H WIFI6, AM5, 4x DDR5, WIFI6, mATX

Registrirajte se in za ta izdelek prejmite 169 tč. (1,69 €)
Vsakih porabljenih 1,00 € = 1 točka — 1 točka = 0,01 € popusta.
S to košarico bi skupno prejeli 169 tč. (1,69 €)

Blagovna znamka: Gigabyte

169,90 €

Z DDV

Dobavni rok: 2–5 dni

Zadnji izdelki v trgovini

Referenca: B840M DS3H WF6

Category: Matične plošče

Opis
Tehnične lastnosti

GIGABYTE B840M DS3H WIFI6, AM5, 4x DDR5, WIFI6, mATX

Technical specifications

Chipset	AMD B840
Supports Central Processor Unit	AMD Ryzen 7000 Series ; AMD Ryzen 8000 Series ; AMD Ryzen 9000 Series
CPU Socket Standard	Socket AM5
CPU Maximum Quantity Supports	1
Memory Type	DDR5 SDRAM
Memory Form Factor	DIMM 288-pin
Memory Speed	4400MHz ; 4800MHz(PC5-38400) ; 5200MHz(PC5-41600)
Maximum Installable System Memory Storage Capacity	256 GB
Memory Slot Total Quantity	4
Provides Error Checking Method	Non-ECC
Memory Features	Two DDR Channels ; Unbuffered ; Dual Rank ; Single Rank ; XMP ; AMD EXPO
Integrated	Storage Controller:; PCI Express 4.0 x4 (2 x M.2 (Key M)); Storage Controller:; Supports: Level 0, Level 1, Level 10; SATA III-600 (4); Wi-Fi Controller:; Realtek RTL8851BE ;
Video Controller Integrated	yes
Video Chipset	AMD Radeon Graphics
Audio Integrated	yes
Device Location	Integrated
Audio Output Mode	7.1 Channel Surround
Compliant Audio Standards	High Definition Audio
LAN Integrated	yes
Wi-Fi	2.4 GHz/5 GHz; IEEE 802.11 b/g/a/n/ac/ax
Bluetooth	Bluetooth 5.3
Data Link Protocol Supports	2.5 Gbps
PCI Express 4.0 x16	1
PCI Express 3.0 x16	1

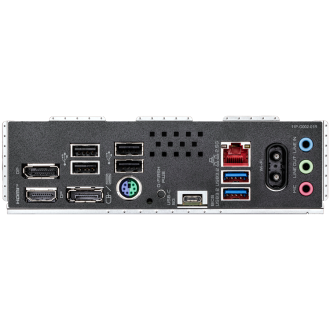

HDMI	1 (HDMI (Type A))
DisplayPort	2
USB 2.0	4 (USB Type-A)
USB 3.2 Gen 1	1 (USB Type C); 2 (USB Type-A)
Audio Interface	3 (3.5-mm minijack)
LAN	1 (RJ-45)
Wi-Fi Antenna	2
PS/2	1 (6-pin)
BIOS Type	AMI
BIOS Features	Gigabyte Q-Flash ; WfM 2.0 Support ; PnP 1.0a Support ; UEFI ; SMBIOS 2.7 Support ; DMI 2.7 Support ; ACPI 5.0 Support ; 256 Mb Flash ROM
Hardware Monitoring	CPU Temperature ; CPU Voltage ; System Temperature ; System Voltage
Power Connectors Type	24+8 pin
Mainboard Features	Fan Speed Control; RGB Fusion
Software Included	Norton Internet Security (OEM version)
Supported Operating System	Microsoft Windows 10 64-bit ; Microsoft Windows 11 64-bit
Built-in Devices	Q-FLASH PLUS Button
Form Factor	Micro ATX
Height (mm)	244 mm
Width (mm)	244 mm
Warranty Products Returnable	Yes
Warranty Term (month)	36 months
Warranty Validation Criteria	Serial Number
Pack Length (mm)	270 mm
Pack Width (mm)	268 mm
Pack Height (mm)	68 mm
Pack Weight Brutto (kg)	1.3 kg
Pack Weight Netto (kg)	1.17 kg
Pieces in pack	1
Box Weight Brutto (kg)	12.53 kg
Retail Packaging Net Weight Carton	0.05 kg
Retail Packaging Net Weight Plastic	0.03 kg
Packs in Box	10
Package Type	Retail
EAN Code	4719331874667
