GIGABYTE MB B650 EAGLE AX (AM5, 4xDDR5 128, 1x PCI-E 4.0 x16x16, 3x PCI-E 3.0 x16x1, 4x SATA, 3x M.2 PCIe 4.0, 1xHDMI, 1xDP, Rea

GIGABYTE MB B650 EAGLE AX (AM5, 4xDDR5 128, 1x PCI-E 4.0 x16x16, 3x PCI-E 3.0 x16x1, 4x SATA, 3x M.2 PCIe 4.0, 1xHDMI, 1xDP, Rea

Registrirajte se in za ta izdelek prejmite 179 tč. (1,79 €) Registrirajte se in za ta izdelek prejmite 179 tč. (1,79 €)
Vsakih porabljenih 1,00 € = 1 točka — 1 točka = 0,01 € popusta.
S to košarico bi skupno prejeli 179 tč. (1,79 €)
Blagovna znamka: Gigabyte

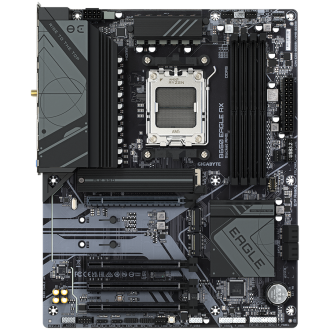

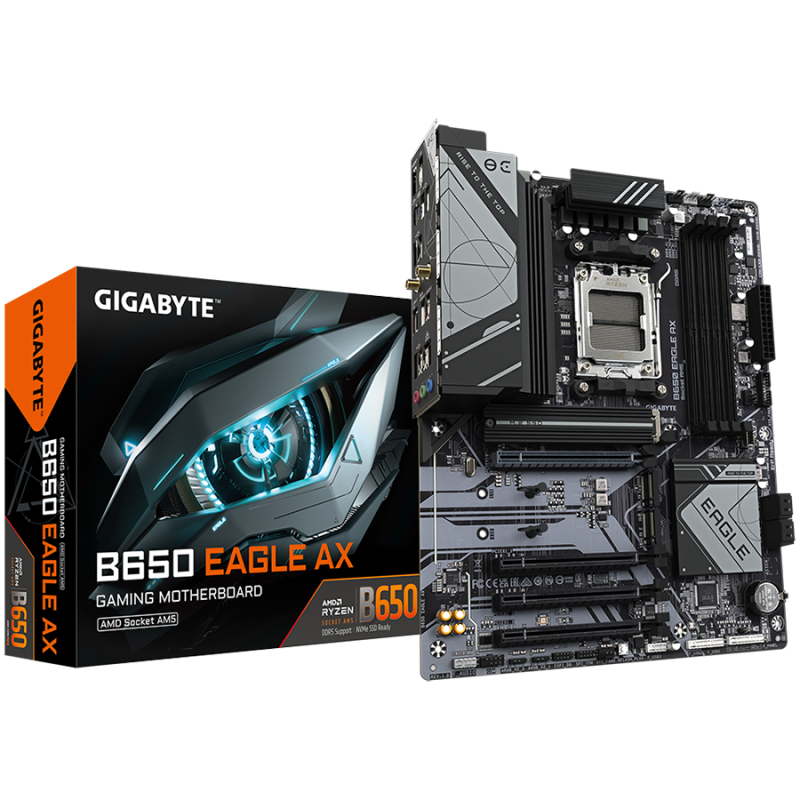

GIGABYTE MB B650 EAGLE AX (AM5, 4xDDR5 128, 1x PCI-E 4.0 x16x16, 3x PCI-E 3.0 x16x1, 4x SATA, 3x M.2 PCIe 4.0, 1xHDMI, 1xDP, Realtek Wi-Fi 6E, 1GbE LAN, ATX, Retail)

179,90 €
Z DDV
Dobavni rok: 2–5 dni
Količina

Referenca: B650 EAGLE AX
Category: Matične plošče

GIGABYTE MB B650 EAGLE AX (AM5, 4xDDR5 128, 1x PCI-E 4.0 x16x16, 3x PCI-E 3.0 x16x1, 4x SATA, 3x M.2 PCIe 4.0, 1xHDMI, 1xDP, Realtek Wi-Fi 6E, 1GbE LAN, ATX, Retail)

Technical specifications

ChipsetAMD B650
Supports Central Processor UnitAMD Ryzen 7000 Series ; AMD Ryzen 8000 Series
CPU Socket StandardSocket AM5
CPU Maximum Quantity Supports1
Memory TypeDDR5 SDRAM
Memory Form FactorDIMM 288-pin
Memory Speed7600MHz
Maximum Installable System Memory Storage Capacity192 GB
Memory Slot Total Quantity4
Provides Error Checking Methodnon-ECC
Memory FeaturesUnbuffered ; Dual Rank ; Single Rank ; XMP ; AMD EXPO
Plug-in-cardWi-Fi Controller:; 1 x M.2 (Key E);
IntegratedStorage Controller:; Supports: Level 0, Level 1, Level 10; PCI Express 5.0 x4 (2 x M.2 (Key M)); Storage Controller:; Supports: Level 0, Level 1, Level 10; PCI Express 4.0 x2 (2 x M.2 (Key M));
IntegratedintegratedStorage ControllerStorage Controller:; Supports: Level 0, Level 0, Level 1, Level 1, Level 10, Level 10; SATA III-600SATA III-600 (4);
Audio Integratedyes
Device LocationIntegrated
Audio Output Mode7.1 Channel Surround
Compliant Audio StandardsHigh Definition Audio
LAN Integratedyes
Wi-FiIEEE 802.11ax Wi-Fi 6E
BluetoothBluetooth 5.3
Data Link Protocol SupportsGigabit Ethernet/Fast Ethernet/Ethernet
PCI Express x164
PS/21

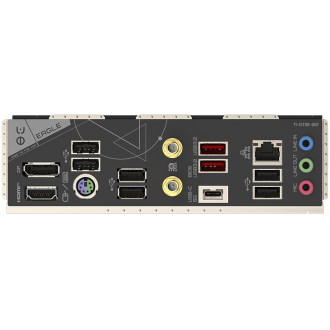

USB 3.2 Gen 11 (USB 3.2 (type C))
USB 2.06 (USB 2.0 (type A))
USB 3.2 Gen 22 (USB 3.2 (type A))
HDMI1 (HDMI (Type A))
DisplayPort1
LAN1 (RJ-45)
Audio Interface3 (3.5-mm minijack)
Antenna2
BIOS TypeAMI
BIOS FeaturesGigabyte Q-Flash ; WfM 2.0 Support ; PnP 1.0a Support ; UEFI ; SMBIOS 2.7 Support ; DMI 2.7 Support ; ACPI 5.0 Support ; 256 Mb Flash ROM
Hardware MonitoringCPU Temperature ; CPU Voltage ; System Temperature ; System Voltage
Mainboard FeaturesFan Speed Control
Supported Operating SystemMicrosoft Windows 10 64-bit ; Microsoft Windows 11 64-bit
Form FactorATX
Height (mm)244 mm
Width (mm)305 mm
Warranty Products ReturnableYes
Warranty Term (month)36 months
Warranty Validation CriteriaSerial Number
Pack Weight Brutto (kg)1.969 kg
Pack Weight Netto (kg)1.5 kg
Pieces in pack1
Box Weight Brutto (kg)2 kg
Retail Packaging Net Weight Carton0.3 kg
Retail Packaging Net Weight Plastic0.2 kg
Packs in Box1
Package TypeRetail
EAN Code4719331860158
B650 EAGLE AX
2 Izdelkov

Določene reference

EAN13
4719331860158
