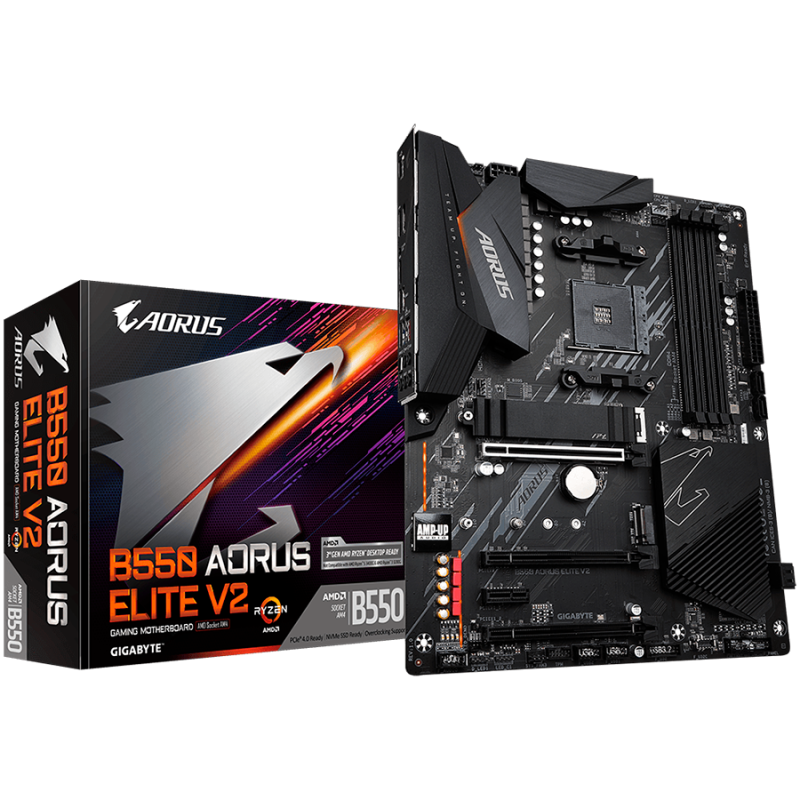

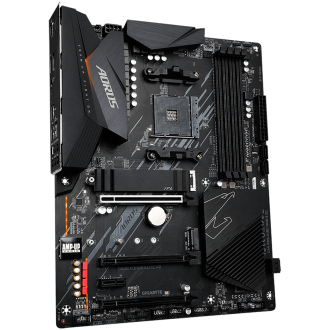

GIGABYTE Mainboard Desktop B550 AORUS ELITE V2 DDR4 (Socket AM4, 4x DDR4 up to 128GB, 1x PCI--Ex16x16 CPU, 3x PCI-Ex16 x2, x1_2,

Blagovna znamka: Gigabyte

GIGABYTE Mainboard Desktop B550 AORUS ELITE V2 DDR4 (Socket AM4, 4x DDR4 up to 128GB, 1x PCI--Ex16x16 CPU, 3x PCI-Ex16 x2, x1_2,x1_1 Chipset, 2x M.2, 4x SATA 6Gb/s, 1xDP, 1xHDMI, 2x USB Gen2, 3x USB Gen1, Realtek 2.5GbE LAN, ATX, Retail)

139,90 €

Z DDV

Razprodano

Referenca: B550 AORUS ELITE V2

Category: Matične plošče

Opis
Tehnične lastnosti

Technical specifications

Chipset	AMD B550
Supports Central Processor Unit	AMD Ryzen Series
CPU Socket Standard	Socket AM4
CPU Maximum Quantity Supports	1
Memory Type	DDR4 SDRAM
Memory Form Factor	DIMM 288-pin
Memory Speed	2133MHz(PC4-17000) ; 2400MHz(PC4-19200) ; 2667MHz(PC4-21300) ; 2933MHz(PC4-23400) ; 3200MHz(PC4-25600)
Maximum Installable System Memory Storage Capacity	128 GB
Memory Slot Total Quantity	2
Provides Error Checking Method	ECC/non-ECC
Memory Features	Two DDR Channels ; Unbuffered ; Dual Rank ; Single Rank ; XMP
Integrated	Storage Controller:; Supports: Level 0, Level 1, Level 10; SATA III-600 (4); Storage Controller:; PCIe/SATA (2 x M.2 (Key M));
Video Controller Integrated	yes
Audio Integrated	yes
Device Location	Integrated
Audio Chipset	Realtek ALC1200
Audio Output Mode	7.1 Channel Surround
Compliant Audio Standards	High Definition Audio
LAN Integrated	yes
Data Link Protocol Supports	Gigabit Ethernet/Fast Ethernet/Ethernet ; 2.5 Gbps
PCI Express 4.0 x16	1
PCI Express 3.0 x2	2
DisplayPort	1
HDMI	1 (HDMI (Type A))
USB 3.2 Gen 2	2 (USB 3.2 (type A))
USB 2.0	2 (USB 2.0 (type A))
Audio Interface	5 (3.5-mm minijack)
LAN	1 (RJ-45)
USB 3.2 Gen 1	3 (USB 3.2 (type A))
S/PDIF-out Optical	1 (TOSLINK)
BIOS Type	AMI
BIOS Features	Gigabyte Q-Flash ; Gigabyte Xpress Install ; WfM 2.0 Support ; Gigabyte EasyTune ; PnP 1.0a Support ; UEFI ; SMBIOS 2.7 Support ; DMI 2.7 Support ; ACPI 5.0 Support ; 256 Mb Flash ROM
Power Connectors Type	24+8 pin
Mainboard Features	RGB Fusion
Software Included	Norton Internet Security
Supported Operating System	Microsoft Windows 10 64-bit
Included Accessories	I/O Shield ; User Guide ; Driver CD
Form Factor	ATX
Height (mm)	244 mm
Width (mm)	305 mm
Warranty Products Returnable	Yes
Warranty Term (month)	36 months
Warranty Validation Criteria	Serial Number
Pack Weight Brutto (kg)	2 kg
Pack Weight Netto (kg)	1.5 kg
Pieces in pack	1
Box Weight Brutto (kg)	16 kg
Retail Packaging Net Weight Carton	0.3 kg
Retail Packaging Net Weight Plastic	0.2 kg
Packs in Box	8
Package Type	Retail
EAN Code	4719331809898
