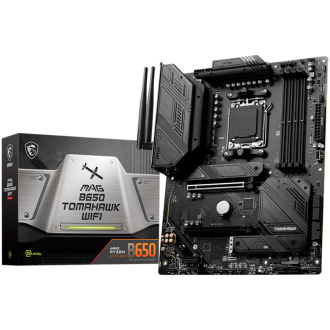

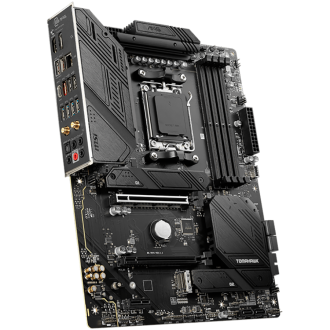

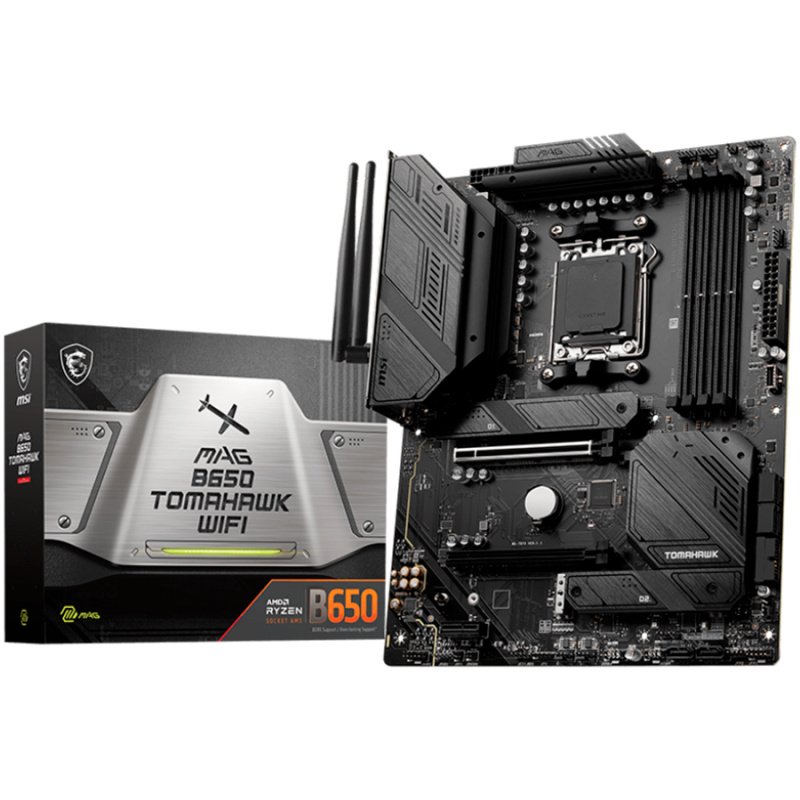

MSI Mainboard Desktop MAG B650 TOMAHAWK WIFI (AM5, 4x DDR5 max. 128GB, 1x PCI-E 4.0 x16x16, 1x PCI-E x1, 3x M.2 4.0, 6x SATA, 2x

Blagovna znamka: MSI

MSI Mainboard Desktop MAG B650 TOMAHAWK WIFI (AM5, 4x DDR5 max. 128GB, 1x PCI-E 4.0 x16x16, 1x PCI-E x1, 3x M.2 4.0, 6x SATA, 2x USB 2.0, 4x USB 3.2 Gen1, 3x USB 3.2 Gen2, 1x USB Type-C 3.2 Gen2, 1x HDMI, 1x DP, RTL8125B 2.5Gbps LAN, Wi-Fi 6E, ATX)

229,90 €

Z DDV

Razprodano

Referenca: MAG B650 TOMAHAWK WIFI

Category: Matične plošče

Opis
Tehnične lastnosti

Technical specifications

Chipset	AMD B650
Supports Central Processor Unit	AMD Ryzen 7000 Series
CPU Socket Standard	Socket AM5
CPU Maximum Quantity Supports	1
Memory Type	DDR5 SDRAM
Memory Form Factor	DIMM 288-pin
Memory Speed	4800MHz(PC5-38400)
Maximum Installable System Memory Storage Capacity	128 GB
Memory Slot Total Quantity	4
Provides Error Checking Method	non-ECC
Memory Features	Unbuffered ; Dual Rank ; Single Rank ; XMP
Integrated	Storage Controller:; Supports: Level 0, Level 1, Level 10; SATA III-600 (6); Storage Controller:; Supports: Level 0, Level 1; PCI Express 4.0 x4 (3 x M.2); Wi-Fi Controller:; 1 x M.2 (Key E);
Audio Integrated	yes
Device Location	Integrated
Audio Chipset	Realtek ALC4080
Audio Data Width	32-bit
Audio Output Mode	7.1 Channel Surround
Compliant Audio Standards	High Definition Audio
LAN Integrated	yes
LAN Chipset	Realtek RTL8125B
Wi-Fi	IEEE 802.11ax Wi-Fi 6
Bluetooth	Bluetooth 5.2
Data Link Protocol Supports	2.5 Gbps
PCI Express 4.0 x16	1
PCI Express x1	1
DisplayPort	1
LAN	1 (RJ-45)
USB 2.0	2 (USB 2.0 (type A))
USB 3.2 Gen 1	4 (USB 3.2 (type A))
Antenna	2
Audio Interface	5 (3.5-mm minijack)
HDMI	1 (HDMI (Type A))
USB 3.2 Gen 2	3 (USB 3.2 (type A))
USB 3.2 Gen 2 x2	1 (USB 3.2 (type C))
S/PDIF-out	1 (TOSLINK)
Supported Operating System	Microsoft Windows 10 64-bit ; Microsoft Windows 11 64-bit
Cable Included	SATA Cable
Included Accessories	Quick Start Guide ; WiFi antenna
Form Factor	ATX
Height (mm)	304.8 mm
Width (mm)	243.84 mm
Warranty Products Returnable	Yes
Warranty Term (month)	36 months
Warranty Validation Criteria	Serial Number
Pack Weight Brutto (kg)	2 kg
Pack Weight Netto (kg)	1.5 kg
Pieces in pack	1
Box Weight Brutto (kg)	20 kg
Retail Packaging Net Weight Carton	0.3 kg
Retail Packaging Net Weight Plastic	0.2 kg
Packs in Box	10
Package Type	Retail
EAN Code	4711377010153
