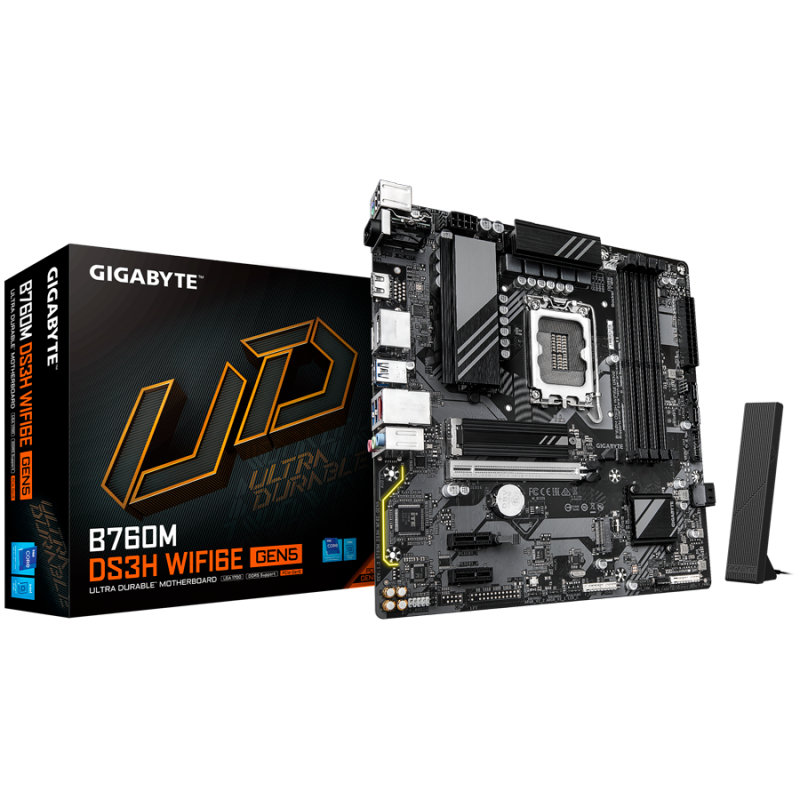

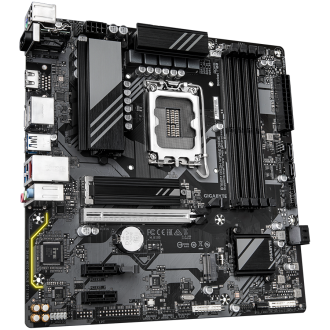

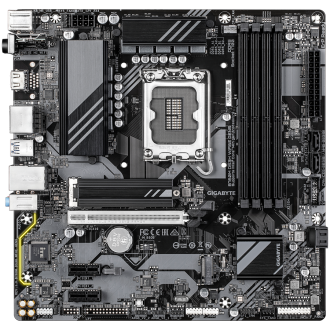

GIGABYTE B760M DS3H WIFI6E GEN5, LGA1700, 4x DDR5, WIFI6E, mATX

GIGABYTE B760M DS3H WIFI6E GEN5, LGA1700, 4x DDR5, WIFI6E, mATX

Blagovna znamka: Gigabyte

GIGABYTE B760M DS3H WIFI6E GEN5, LGA1700, 4x DDR5, WIFI6E, mATX

159,90 €
Z DDV
Količina
Oops this product is currently out of stock! If you want us to double check availability, please email us at: info@respawnshop.com

Referenca: B760M DS3H WF6E GEN5
Category: Matične plošče

GIGABYTE B760M DS3H WIFI6E GEN5, LGA1700, 4x DDR5, WIFI6E, mATX

Technical specifications

ChipsetIntel B760
Supports Central Processor UnitIntel 12th Gen Processors ; Intel 13th Gen Processors ; Intel 14th Gen Processors
CPU Socket StandardSocket 1700
CPU Maximum Quantity Supports1
Memory TypeDDR5 SDRAM
Memory Form FactorDIMM 288-pin
Memory Speed4400MHz ; 4800MHz(PC5-38400) ; 5200MHz(PC5-41600) ; 5600MHz(PC5-44800)
Maximum Installable System Memory Storage Capacity256 GB
Memory Slot Total Quantity4
Provides Error Checking Methodnon-ECC
Memory FeaturesTwo DDR Channels ; Unbuffered ; Dual Rank ; Single Rank ; XMP
IntegratedStorage Controller:; PCI Express 4.0 x4 (2 x M.2 (Key M)); Storage Controller:; Supports: Level 0, Level 1, Level 10, Level 5; SATA III-600 (4); Wi-Fi Controller:; Intel Wi-Fi 6E AX210 ;
Video Controller Integratedyes
Video ChipsetIntel HD Graphics
Audio Integratedyes
Device LocationIntegrated
Audio Output Mode7.1 Channel Surround
Compliant Audio StandardsHigh Definition Audio
LAN Integratedyes
Wi-FiIEEE 802.11ax Wi-Fi 6E; IEEE 802.11 b/g/a/n/ac/ax; 2.4/5/6GHz
BluetoothBluetooth 5.3
Data Link Protocol Supports2.5 Gbps
PCI Express 5.0 x161
PCI Express 3.0 x12

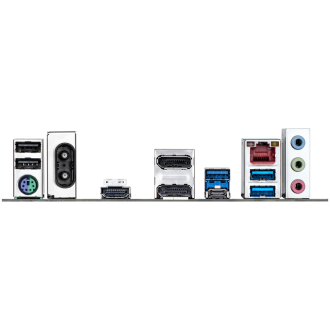

USB 2.02 (USB Type-A)
USB 3.2 Gen 13 (USB Type-A)
USB 3.2 Gen 21 (USB Type C)
DisplayPort2
HDMI1 (HDMI (Type A))
PS/21 (6-pin)
LAN1 (RJ-45)
Audio Interface3 (3.5-mm minijack)
Wi-Fi Antenna2
BIOS TypeAMI
BIOS FeaturesGigabyte Q-Flash ; WfM 2.0 Support ; PnP 1.0a Support ; UEFI ; SMBIOS 2.7 Support ; 128 Mb Flash ROM ; DMI 2.7 Support ; ACPI 5.0 Support
Hardware MonitoringCPU Temperature ; CPU Voltage ; System Temperature ; System Voltage
Power Connectors Type24+8 pin
Mainboard FeaturesFan Speed Control; RGB Fusion
Software IncludedNorton Internet Security (OEM version)
Supported Operating SystemMicrosoft Windows 10 64-bit ; Microsoft Windows 11 64-bit
Form FactorMicro ATX
Height (mm)244 mm
Width (mm)244 mm
Warranty Products ReturnableYes
Warranty Term (month)36 months
Warranty Validation CriteriaSerial Number
Pack Length (mm)270 mm
Pack Width (mm)268 mm
Pack Height (mm)68 mm
Pack Weight Brutto (kg)1.3 kg
Pack Weight Netto (kg)0.966 kg
Pieces in pack1
Box Weight Brutto (kg)8 kg
Retail Packaging Net Weight Carton0.01 kg
Retail Packaging Net Weight Plastic0.01 kg
Packs in Box8
Package TypeRetail
EAN Code4719331872809
B760M DS3H WF6E GEN5

Določene reference

EAN13
4719331872809
